Pacman Information Provider in PYthon
Version 0.3
July 16, 2002








Pippy is an information provider compatible with the Monitoring and Discovery Service (MDS) of the Globus Toolkit and the Pacman software package installer from Saul Youssef at Boston University.  Pippy can read pacman databases and generate appropriate LDAP entries for installed software packages that are compatible with MDS.  Once installed, pippy becomes part of the host's Grid Resource Information Service (GRIS).  By integrating information about the installed software base of grid nodes into the MDS one can make "better" decisions about where to start, or move, computational tasks in a grid environment.  This document will explain how a pacman package is mapped to an LDAP entry, where the entry appears in the Directory Information Tree (DIT) maintained by the GRIS, and the command line arguments of pippy.

Pippy is supplied as a pacman package available at the following cache: http://www-hep.uta.edu/pacman   Newer versions of pacman include this site in the list of trusted caches.   The distribution includes a README file available here.



GRIS, implemented as a custom backend to the OpenLDAP's slapd server, allows one to add data to the existing store of information maintained by the GRIS by creating information providers (IPs).  For an IP to work within the GRIS, it simply prints LDAP entries in the LDAP Data Interchange Format (LDIF).  At appropriate times GRIS will run the IP and collect its LDIF output and add the entries to the DIT maintained by GRIS.  The MDS does not maintain a backing store for the DIT, rather, all entries are kept within in-memory caches.  When the portion of the DIT maintained by GRIS becomes stale, GRIS will execute the information providers to regenerate the DIT.

Pacman is a software package management system useful for grid environments.  It eases the deployment and maintenance of software packages by using software caches.   Pacman maintains a database of which software packages have been installed on a system and which software cache provided the package.  One difference between pacman and other systems, most notably rpm, is that the packager can specify environment variables and  values that should exist within a user's environment for the package to function along with a set of commands that should be executed prior to the package's use.  Pacman maintains a file that a user can source to have the information automatically included.



Pippy works by mapping attributes that describe a software package to LDAP objectclasses and attributes that are compatible with GRIS.  A pacman software package is described by ".pacman" file.  During execution, pacman will read the ".pacman" file and create an internal instance of a Package object.  There is a one-to-one mapping of the attributes in a .pacman file to the attributes of a Package object.  In the remainder of the discussion the attributes defined in a .pacman file are discussed with noted exceptions.


The following table lists the mappings from the attributes in a .pacman file and the LDAP attributes used by pippy

 .pacman Attribute    Meaning   LDAP Attribute
name The name of the software package UTA-SW-Package-Name
description A short description of the package UTA-SW-Package-Description
url generic web site for the package labeledURI
source URL to pull package from labeledURI
systems mapping from platform names to specific files and
installation directories
depends packages that must be installed before this package
exists list of pathnames that must exist in the local file system before installation
inpath list of entries that must be found using which before installation
bins list of executables that will be installed in /usr/local/bin
paths list of environment variables that will be modified UTA-SW-Package-Enviro-Prepend
enviros list of environment variable that will be modified UTA-SW-Package-Enviro-Set
localdoc web-based documentation files installed on local file system
daemons names of daemon processes that will be started
install commands used to install the package
setup commands used to setup the package for use UTA-SW-Sequenced-Setup-Command
demo pathname to a demonstration of the package
path to a local pacman maintained file that can be sourced to modify user's environment  UTA-SW-Package-Source-File

Notes:
(1) All schema elements, with the exception of labeledURI, are defined in pip.schema.  labeledURI is provided by OpenLDAP's core.schema normally found at $GLOBUS_LOCATION/etc/openldap/schemas/core.schema

(2) UTA-SW-Package-Enviro-Prepend, UTA-SW-Package-Enviro-Set and UTA-SW-Sequenced-Setup-Command are multi-valued attributes.

(3) UTA-SW-Package-Source-File points to a file maintained by pacman for all installed packages.  It will modify the user's environment with the values of
the attributes listed in note (2).

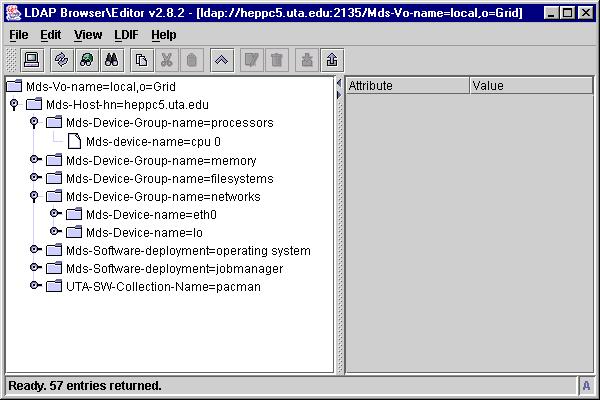

In LDAP entries entered into the DIT form a hierarchy similar to the way that files are organized on a computer.  Unlike filesystems LDAP does not have directories, per se, rather, an entry can be either a leaf or a branch in the DIT.  In the screen-shot below, one sees that there is an entry named "Mds-vo-name=local,o=Grid" that has 1 child entry whose relative name is Mds-Host-hn=heppc5.uta.edu.  The fully qualified name of this child entry is called its distinguished name (dn) and is comprised of two parts; its relative distinguished name (rdn) and the dn of its parent.  For the example given the rdn is Mds-Host-hn=heppc5.uta.edu and the parent's dn is Mds-vo-name=local,o=Grid".  Thus the dn of the entry is "Mds-Host-hn=heppc5.uta.edu,Mds-vo-name=local,o=Grid".  In the default setup of the GRIS all information about a host is placed below this entry.  The figure shows a number of entries with varying rdn's based on the Mds-Device-Group-name attribute.

The diagram also shows the how the DIT can be used to group similar information.  In GRIS all of the entries describing network interfaces are located below the Mds-Device-Group-name=networks entry.  The diagram shows two such entries, one for the eth0 interface and one for the lo interface.  Similarly pippy creates an entry under which is all the information about installed software packages.  By default the collection has the rdn of UTA-SW-Collection-Name=pacman while the dn would be "UTA-SW-Collection-Name=pacman,Mds-Host-hn=heppc5.uta.edu,Mds-vo-name=local,o=Grid".




Figure 1.

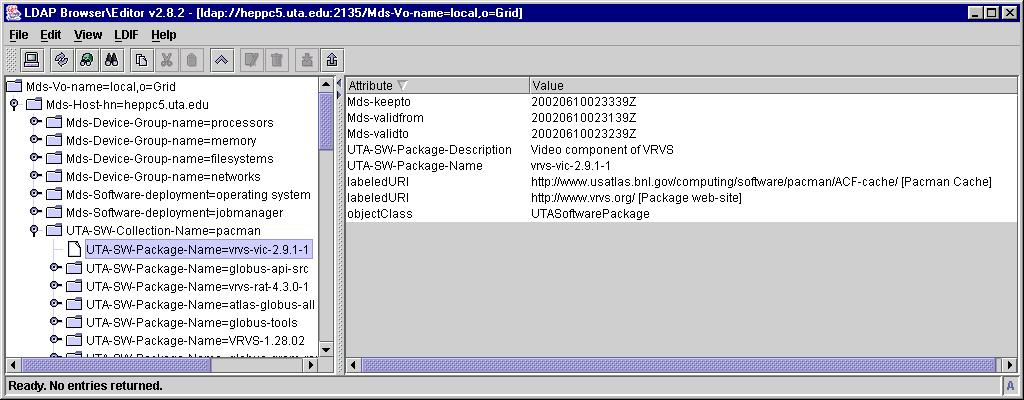

In the left half of figure 2. one can see a number of packages stored under pippy's default collection.  The right half of the same figure shows the information provided for the vrvs-vic-2.9.1-1 package.


Figure 2.




I have constructed a mythical pacman database that includes nearly all available packages from the trusted caches mentioned on the pacman web-page.  If you have a GUI based ldap browser such as shown in figures 1. and 2., you can review how various packages are represented in the MDS.  The entries are available via
ldap://heppc5.uta.edu:2135 all of the entries are under the following dn: "UTA-SW-Collection-Name=pacman,Mds-Host-hn=heppc5.uta.edu,mds-vo-name=local,o=grid"

You can review the information via grid-info-search by using the following command:

grid-info-search -x -h heppc5.uta.edu -p 2135 -b "UTA-SW-Collection-Name=pacman,Mds-Host-hn=heppc5.uta.edu,mds-vo-name=local,o=grid"

The output of the previous command is available here.






Pippy is a python program that is executed from within the GRIS backend.  The program takes a number of command line arguments that are specified by an entry in $GLOBUS_LOCATION/grid-info-resource-ldif.conf (once pippy has been installed).  Pippy can be executed outside of GRIS provided that one provides the program with the needed command line arguments.  Pippy's signature is:

pip.py [-d 1]              # prints messages to standard error
       [--ttl n]           # the length of time in seconds that entries should be valid for
       [--cache n]         # the recommendation to GRIS in seconds on how long to keep entries
       --base  base_dn     # the dn of the parent for the UTASoftwareCollention object
       --collection name   # the text for the UTA-SW-Collection-Name attribute
       file1 file2 ...     # pathnames to pacman databases

During execution pippy will report errors, and eventually debug information, to the LOG_USER facility of syslogd with a prefix of pip.py
The -d 1 option has been implemented so that messages that go to syslog are also printed to standard error.



Any and all comments on pippy or this documentation would be greatly appreciated.  Send to mcguigan@hepmail.uta.edu
